HDBaseT Extender with ARC, LAN – 100m

Main Features

Extends 1080p@100m and 4K@90m
Supports resolutions up to 4K/60Hz YUV 4:4:4
HDMI 2.0b, HDCP 2.2, 3D and CEC compatible
Real time uncompressed with zero latency
LPCM, Dolby Digital™, DTS Digital Surround Sound™
Supports ARC (audio return channel)
Full Duplex RS232 and 1G LAN
Bi Directional IR path
PoC (power over cable), Receiver is powered over CAT5e/6

This HDBaseT Extender extends high definition video, audio, bi-directional IR, RS-232 and LAN signals. The supported transmission distance is up to 90 meters for 4K@60Hz 4:4:4 resolution and 100 meters for 1080P/60Hz resolution between transmitter and receiver via a single CAT5e/6 cable. The transmitter supports ARC (audio return channel) and local audio extraction. In addition, the extender is equipped with bi-directional IR pass-through which allows for source and display control. It also supports PoC (power over cable).

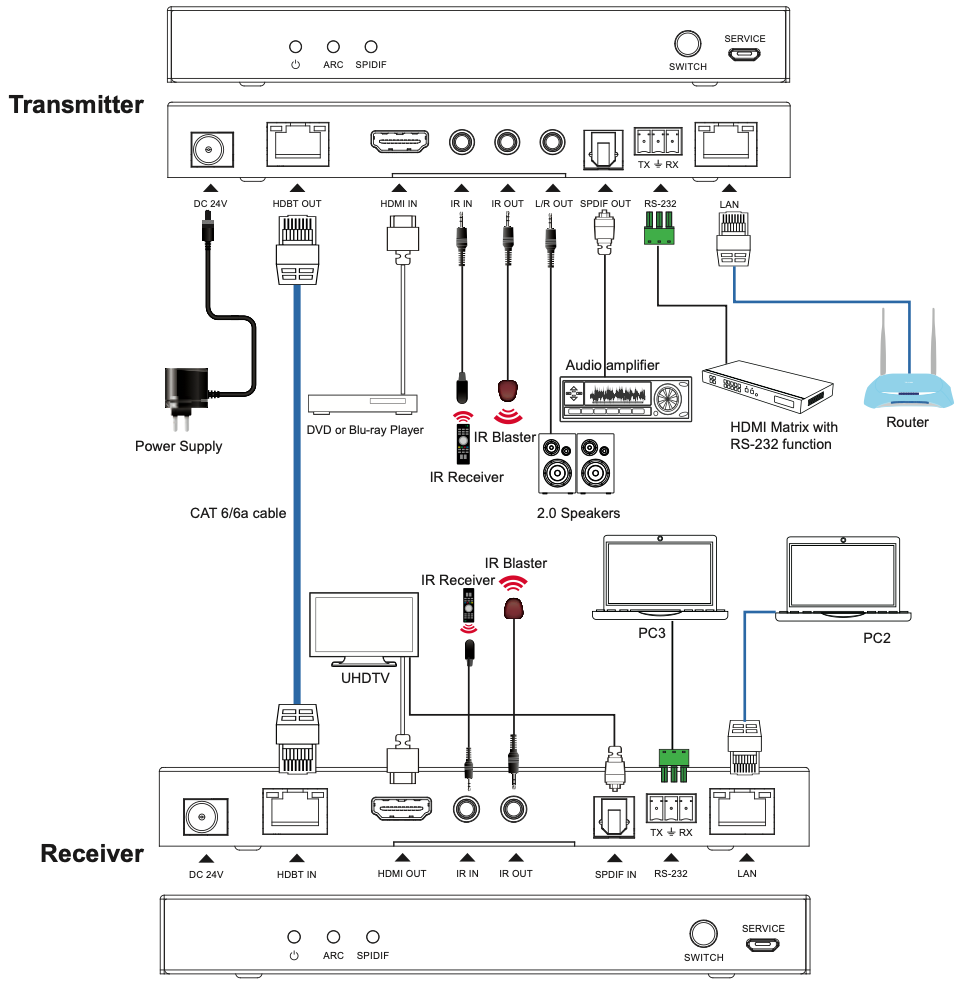

The extender includes two units, transmitter and receiver. The transmitter captures and transmits the input signals over one cost effective CAT5e/6 cable. The receiver receives the incoming signals and presents them as outputs for your devices.

This extender offers the most convenient solution for HDMI extension via a single CAT5e/6 with long distance capability, and is the perfect solution for any application.

Transmitter Connectivity

HDMI Input: 1 x HDMI Type A, 19-Pin Female
Signal Output: 1 x RJ45 Socket
Digital Audio: SPDIF Optical
Analogue Audio: 3.5mm Stereo Jack Socket
RS232: 1 x 3 Pin Phoenix Terminal
IR Output: 1 x 3.5mm Jack Socket
IR Input: 1 x 3.5mm Jack Socket
Service: 1 x Mini USB (firmware update only)
LAN: 1 x RJ45 Data Socket
Power: 1 x DC Jack

Receiver Connectivity

Signal Input: 1 x RJ45 Socket
HDMI Output: 1 x HDMI Type A, 19-Pin Female
Digital Audio: 1 x SPDIF Optical
RS232: 1 x 3 Pin Phoenix Terminal
IR Output: 1 x 3.5mm Jack Socket
IR Input: 1 x 3.5mm Jack Socket
Service: 1 x Mini USB (firmware update only)
LAN: 1 x RJ45 Data Socket
Power: 1 x DC Jack

Signals

HDMI Input: HDMI 2.0b / DVI 1.0
HDCP Compliance: HDCP 2.2 / HDCP 1x
Video Resolutions: Up to 4K 50/60Hz 4:4:4
Colour Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Colour Depth: 8-bit, 10-bit, 12-bit, [1080p, 4K/30Hz, 4K/60Hz (YCbCr 4:2:0)], [8-bit 4K/60Hz (YCbCr 4:4:4)]
HDMI Audio Formats: PCM 2.0 / 5.1 / 7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS HD Master Audio, DSD
HDR Formats: HDR10, HDR10+, Dolby Vision
Distance: 70m/1080p and 40m/4K
Analogue Audio: PCM 2.0
Infra-Red: IR Frequency: 30KHz 50 56KHz (940nm)
RS232: Full Duplex
LAN: 1G pass-through
